Fabric Acoustic Panels Guide: Benefits, NRC Ratings, Applications & Installation

Fabric acoustic panels are sound-absorbing panels designed to help control reflected sound, excessive reverberation and poor speech clarity within interior spaces. They are commonly used in offices, conference rooms, educational institutions, auditoriums, hospitality environments, studios and other commercial or architectural interiors where acoustic comfort is important.

Modern interiors often include hard surfaces such as glass, concrete, stone, metal and finished walls. These surfaces can reflect sound and increase reverberation, making conversations, presentations and other activities more difficult to hear clearly. Fabric acoustic panels introduce sound-absorbing surfaces that can help manage these reflections while also providing a range of decorative finishes.

Fabric acoustic panels are primarily used for room acoustic treatment. They absorb reflected sound within a space rather than functioning as a general soundproofing system for blocking sound transmission between rooms.

This guide explains what fabric acoustic panels are, how they work, their benefits, types, materials, NRC ratings, applications, installation considerations and the factors to consider when selecting an appropriate system.

For product specifications and commercial applications, you can also explore our fabric acoustic panels range.

---

What Are Fabric Acoustic Panels?

Fabric acoustic panels are sound-absorbing panels consisting of an acoustic core covered with an acoustically suitable fabric. They are commonly installed on walls, although fabric-faced acoustic systems can also be designed for ceiling and suspended applications.

The main purpose of a fabric acoustic panel is to absorb a portion of the sound energy that reaches its surface. This helps reduce excessive reflections and reverberation within the room and can contribute to better speech intelligibility and acoustic comfort.

A typical fabric acoustic panel may include:

• Sound-absorbing acoustic core
• Acoustically suitable fabric covering
• Rigid frame or structural backing, depending on the product
• Mounting or fixing system

Acoustic cores can be manufactured from different materials, including glass fibre, mineral wool, polyester fibre and other sound-absorbing materials. The actual acoustic performance depends on the complete panel construction rather than the core material alone.

The fabric facing provides the finished appearance and should be suitable for acoustic applications so that sound can reach the absorptive core.

---

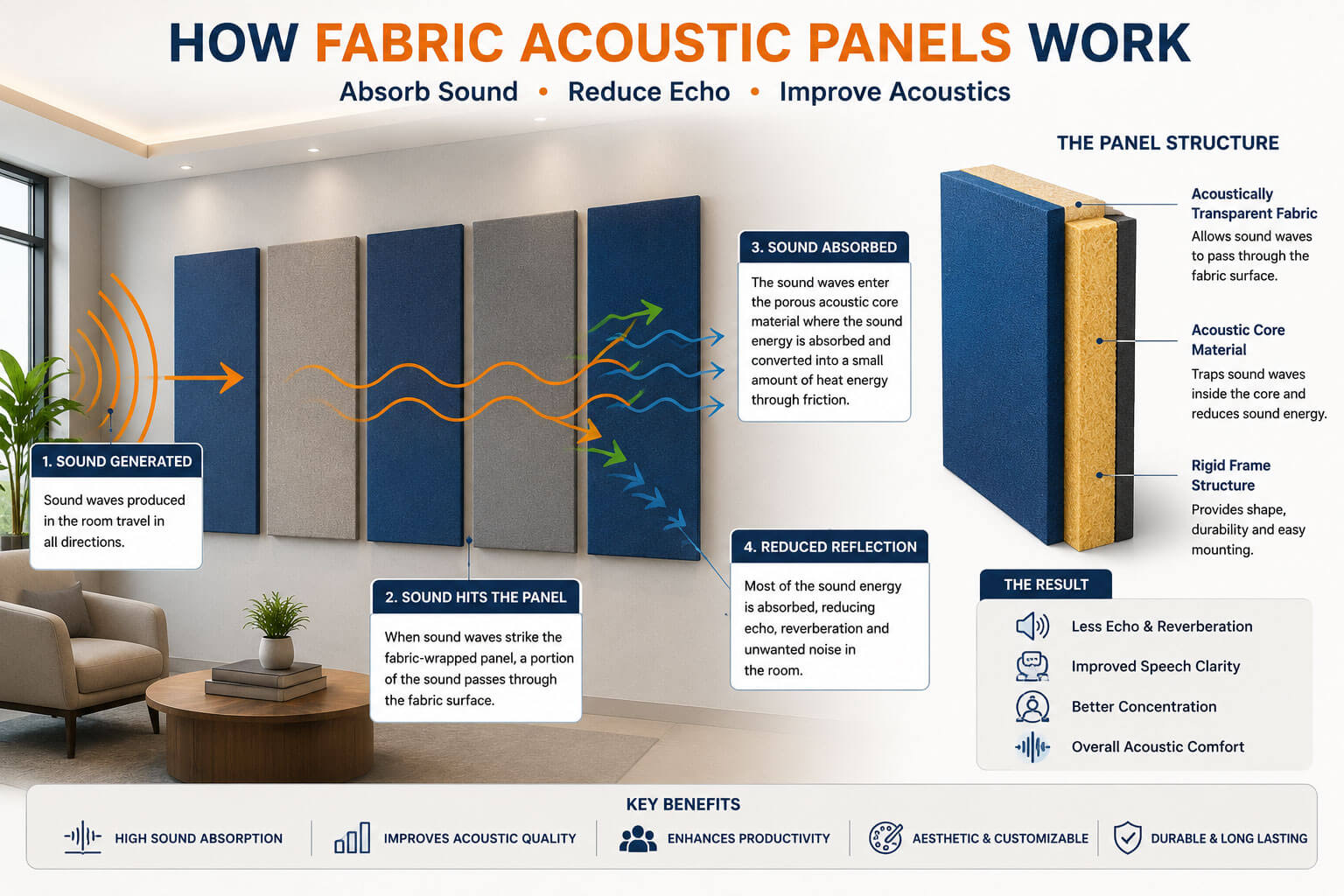

How Do Fabric Acoustic Panels Work?

When people speak, equipment operates or other sounds are produced inside a room, sound waves travel through the air and interact with walls, ceilings, floors, furniture and other surfaces.

Hard and reflective surfaces can return a significant amount of sound energy back into the room. When multiple reflections continue to occur, reverberation can increase and speech may become less distinct.

Fabric acoustic panels help by absorbing a portion of the sound energy that reaches their surface. Sound passes through the acoustically suitable fabric and enters the sound-absorbing core, where part of the acoustic energy is dissipated rather than being reflected back into the room.

Depending on the room and amount of treatment installed, this can help with:

• Control of excessive sound reflections
• Reduction of excessive reverberation
• Improved speech intelligibility
• Better acoustic comfort
• More controlled listening conditions

The result depends on factors such as room size, ceiling height, existing finishes, panel characteristics, mounting method and the amount and location of acoustic treatment.

---

Fabric Acoustic Panels vs Soundproofing

Fabric acoustic panels and soundproofing systems address different acoustic problems and should not be treated as interchangeable solutions.

Fabric acoustic panels primarily provide sound absorption within a room. They are useful when the objective is to control reflections, excessive reverberation and speech clarity.

Soundproofing, or sound isolation, is concerned with reducing the transmission of sound from one room or area to another. This can involve building elements such as walls, floors, doors, ceilings, seals and other construction details.

Therefore, fabric acoustic panels can improve the acoustic environment inside a room, but they should not be described as a standalone solution for preventing sound from passing between rooms.

---

Key Benefits of Fabric Acoustic Panels

Sound Absorption

The primary function of fabric acoustic panels is to absorb reflected sound. Appropriately selected panels can help control reverberation and reduce the amount of sound energy reflected from treated surfaces.

Improved Speech Intelligibility

Excessive reverberation can make conversations, presentations and announcements difficult to understand. Acoustic treatment can reduce unwanted reflections and contribute to clearer speech within offices, conference rooms, classrooms and other occupied spaces.

Improved Acoustic Comfort

Rooms with many hard and reflective surfaces can feel acoustically uncomfortable. Fabric acoustic panels can help create a more controlled sound environment by introducing additional sound-absorbing surface area.

Efficient Use of Wall Space

Wall-mounted acoustic panels can provide sound absorption without requiring additional floor area. This can be useful in offices, meeting rooms, classrooms and other interiors where floor space is limited.

Design Flexibility

Fabric acoustic panels are available in different sizes, shapes, colours, textures and configurations, depending on the product system. Some systems can also incorporate printed graphics or custom finishes.

Fire-Rated Options

Some fabric acoustic panel systems are available with fire-rated fabrics and core materials. Fire performance depends on the complete product construction and applicable test classification, so project specifications should be checked against manufacturer documentation.

Suitable for New and Existing Interiors

Fabric acoustic panels can be considered during new construction as well as for acoustic improvements within existing interiors. The appropriate mounting system depends on the wall or ceiling construction and project requirements.

The actual acoustic benefit depends on the selected product, installation method, treatment coverage and characteristics of the room.

---

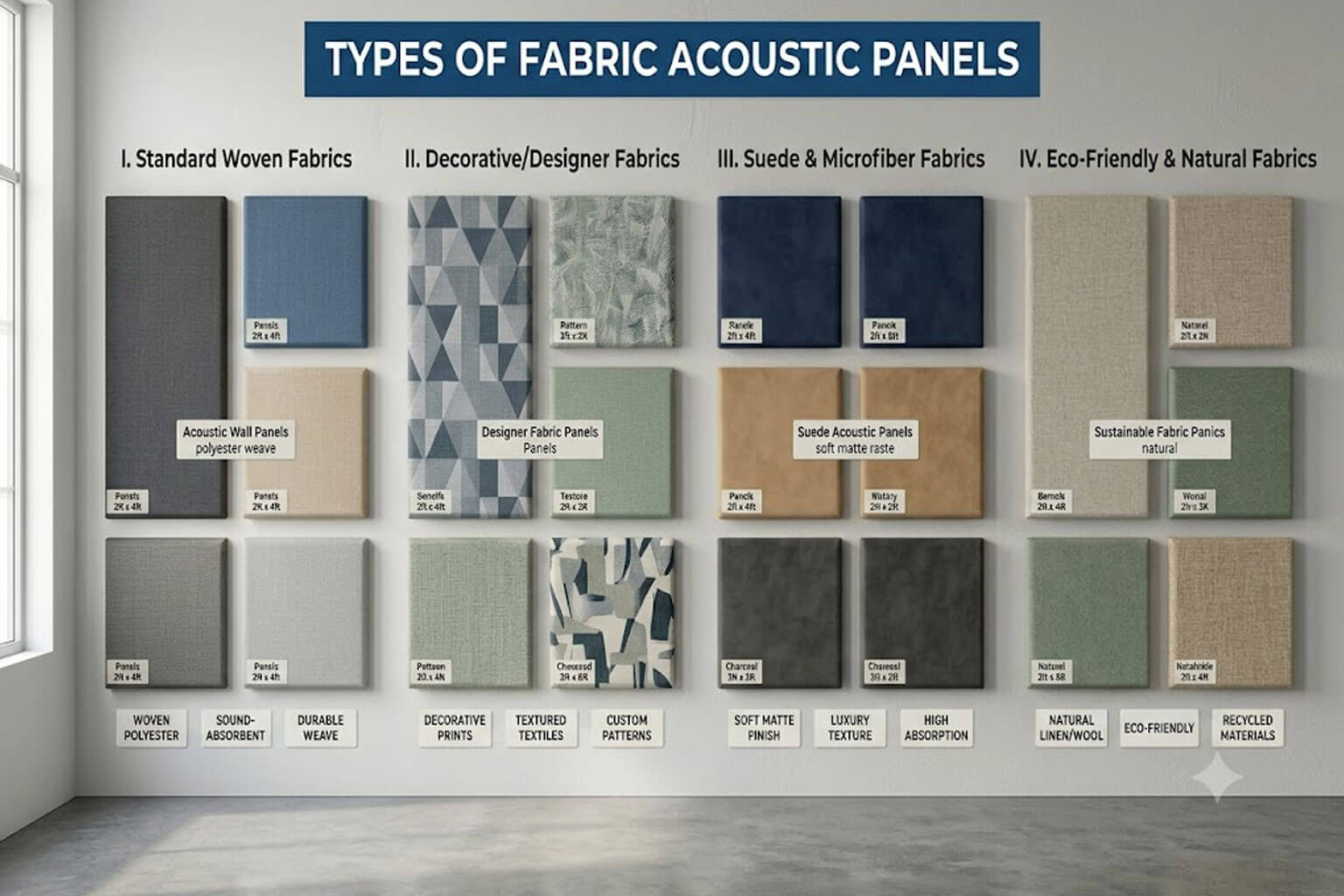

Types and Configurations of Fabric Acoustic Panels

Fabric acoustic panels can be manufactured and installed in different formats depending on the acoustic objective, available surface area and interior design requirements.

Wall-Mounted Fabric Acoustic Panels

Wall-mounted fabric acoustic panels are one of the most common forms of fabric acoustic treatment. They are positioned on walls to absorb reflected sound and help control reverberation.

They can be considered for:

• Corporate offices
• Conference and meeting rooms
• Classrooms
• Training rooms
• Auditoriums
• Studios
• Libraries
• Home theatres

The location and quantity of wall treatment should be considered according to the room's acoustic requirements rather than simply covering walls without a treatment strategy.

Fabric-Wrapped Ceiling Panels

Fabric-faced acoustic panels can also be used in ceiling-level applications where additional overhead sound absorption is required.

Depending on the system, ceiling treatment may be combined with ceiling acoustic panels or ceiling acoustic tiles to provide additional sound-absorbing surface area.

Suspended Fabric Acoustic Systems

Suspended acoustic systems can introduce sound-absorbing surfaces into open areas where wall treatment alone may not provide sufficient coverage. These systems can be particularly useful in spaces with exposed or high ceilings.

Depending on the product design, suspended treatment may be configured as clouds, panels or other architectural forms.

Fabric Acoustic Baffles

Vertical acoustic baffles are suspended from ceilings and can provide additional sound absorption in spaces with large open volumes or exposed ceilings.

Where this type of treatment is appropriate, see our acoustic hanging baffles for more information.

Printed Fabric Acoustic Panels

Printed fabric acoustic panels combine sound absorption with decorative graphics. Depending on the system, custom artwork, branding, patterns or other visual elements can be incorporated into the fabric finish.

These panels can be considered where acoustic treatment is required without separating the acoustic function from the interior design concept.

---

Materials Used in Fabric Acoustic Panels

The construction of a fabric acoustic panel has a direct influence on its sound absorption characteristics. Different projects may use different acoustic core materials according to performance, thickness, fire, environmental and design requirements.

Glass Fibre or Fiberglass Acoustic Core

Glass fibre-based acoustic cores are widely used in sound-absorbing panel systems. Their acoustic characteristics depend on density, thickness, panel construction and installation conditions.

Mineral Wool Acoustic Core

Mineral wool can provide sound absorption and may also be selected where specific fire-performance characteristics are required. The suitability of the material depends on the complete product system and project specification.

Polyester Fibre Acoustic Core

Polyester fibre is another material used in acoustic treatment systems. It can be manufactured into lightweight acoustic boards and panels and is available in different configurations depending on the product.

Acoustic Fabric

The fabric facing is an important part of the finished panel. An acoustic fabric should be suitable for the intended panel construction and allow sound to reach the absorptive core while providing the desired appearance.

---

Design Options for Fabric Acoustic Panels

Fabric acoustic panels can be incorporated into interiors in a variety of shapes and layouts. Depending on the product system, options may include:

• Square panels
• Rectangular panels
• Large-format panels
• Geometric configurations
• Custom architectural shapes
• Decorative arrangements
• Printed graphic panels
• Branding and visual design panels

Colour, texture, panel size and layout can be selected to coordinate with the surrounding interior. Acoustic performance should remain the primary consideration when determining panel construction and coverage.

---

Applications of Fabric Acoustic Panels

Fabric acoustic panels can be considered for a wide range of interior spaces where reflected sound and excessive reverberation need to be controlled.

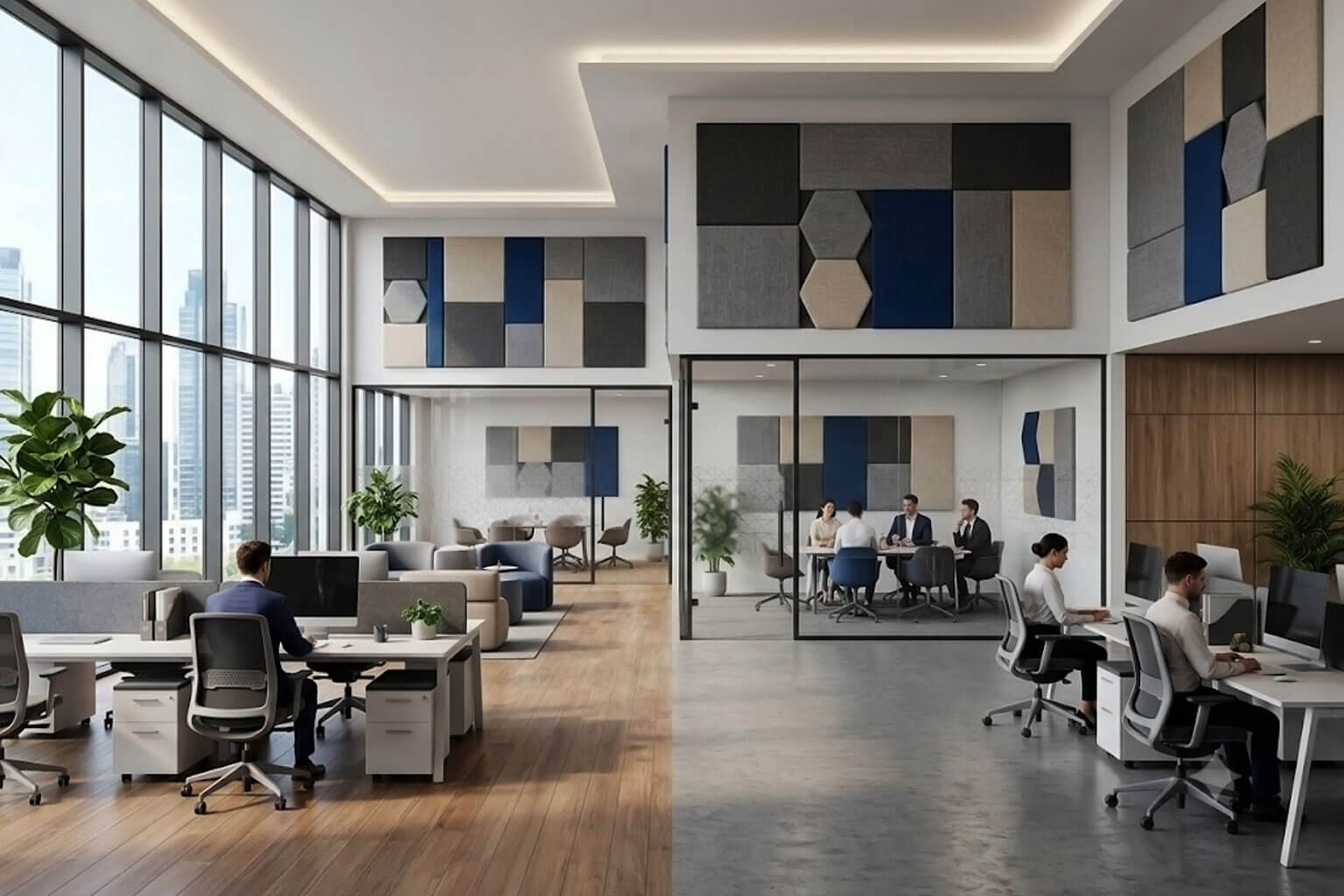

Corporate Offices

Open-plan offices can contain numerous sound sources, including conversations, telephone calls, meetings and office equipment. Fabric acoustic panels can help control reflected sound and improve the acoustic conditions of work areas and meeting rooms.

Office projects may combine fabric acoustic panels with ceiling acoustic panels and other sound-absorbing treatments according to the requirements of the space.

Conference and Meeting Rooms

Conference and meeting rooms require clear communication between participants. Excessive reflections from glass, hard walls and other surfaces can affect speech intelligibility.

Fabric acoustic panels can be positioned on appropriate wall surfaces to help control reflections and create a more comfortable environment for meetings and presentations.

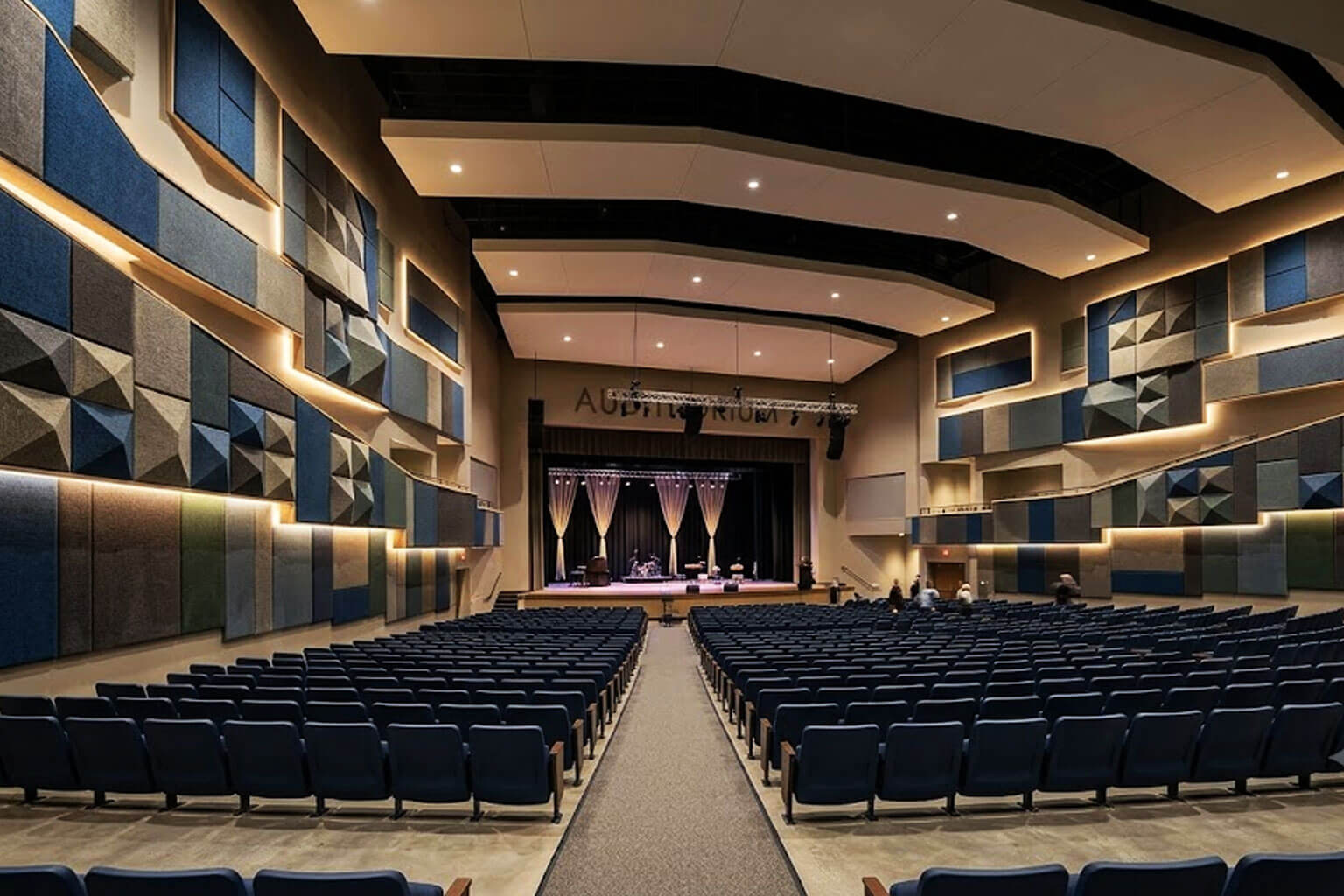

Auditoriums and Conference Halls

Auditoriums and conference halls often have larger room volumes and require careful control of reverberation and reflected sound.

Fabric acoustic treatment can form part of a broader auditorium acoustic solution where wall, ceiling and other acoustic treatments are considered together.

Educational Institutions

Classrooms, lecture rooms and training facilities can benefit from controlled room acoustics because speech needs to remain understandable throughout the occupied space.

Fabric acoustic panels can help reduce excessive reflected sound and contribute to improved speech intelligibility and acoustic comfort for students and instructors.

Hotels, Restaurants and Hospitality Spaces

Hospitality interiors often combine hard architectural surfaces with open layouts. Acoustic treatment can help manage reflected sound while maintaining the desired visual appearance.

Fabric acoustic panels can be used in selected wall areas, meeting rooms, restaurants, lounges and other hospitality environments depending on the acoustic and design requirements.

Studios, Media Rooms and Home Theatres

Recording, media and home theatre spaces require controlled acoustic conditions for listening and sound reproduction. Fabric acoustic panels can help manage reflections within the room when incorporated into an appropriate acoustic treatment plan.

---

Understanding NRC Ratings for Fabric Acoustic Panels

The Noise Reduction Coefficient (NRC) is a commonly used rating for describing the sound absorption performance of an acoustic material. It is based on sound absorption measurements at specified test frequencies and provides a useful way to compare acoustic products under defined test conditions.

A higher NRC generally indicates greater sound absorption under the relevant test conditions. However, NRC should not be considered on its own when selecting a fabric acoustic panel.

The acoustic performance of a fabric acoustic panel can be influenced by:

• Panel thickness
• Acoustic core material
• Panel construction
• Mounting method
• Air gap behind the panel
• Amount of acoustic treatment installed
• Room size and geometry
• Frequency range of the sound being controlled

For a specific project, the manufacturer's technical data and relevant acoustic test results should be reviewed rather than relying on a generic NRC value.

---

Fabric Acoustic Panels vs Other Acoustic Treatments

Fabric acoustic panels are one part of a broader acoustic treatment strategy. Different products can be used according to the surfaces available, room dimensions and type of acoustic problem being addressed.

Fabric acoustic panels are commonly used on walls and other surfaces where broadband sound absorption is required.

Ceiling acoustic panels and tiles can provide sound absorption across ceiling areas and may be useful where overhead reflections contribute to excessive reverberation.

Acoustic wall panels provide additional sound absorption on vertical surfaces and can be incorporated into offices, meeting rooms, educational spaces and other interiors.

Acoustic hanging baffles and suspended systems can be useful in larger spaces or interiors with exposed and high ceilings where additional suspended absorption is required.

The most suitable combination depends on the room's acoustic requirements rather than simply using as many different products as possible.

---

How to Select Fabric Acoustic Panels

Selecting the right fabric acoustic panels requires a balance between the room's acoustic requirements, installation conditions and interior design objectives. The following factors should be considered before choosing a panel system:

• Room function: Offices, conference rooms, classrooms, auditoriums, studios and hospitality spaces can have different acoustic requirements based on occupancy, activities and sound sources.
• Room size and geometry: Room volume, ceiling height, wall dimensions and the proportion of hard or reflective surfaces influence sound reflections and reverberation.
• Panel thickness and acoustic core: Panel thickness, density and core construction affect sound absorption. The appropriate specification should be selected according to the acoustic requirements of the space.
• Acoustic performance: Review manufacturer-provided acoustic test data, including relevant absorption results, rather than relying on a generic performance claim or a single NRC value.
• Panel coverage and placement: The quantity and location of panels are important. Strategic placement on suitable wall or ceiling surfaces can be more effective than simply installing panels without considering the room's acoustic characteristics.
• Mounting method: Direct mounting, framed systems and installations with an air gap behind the panel can produce different acoustic results. The mounting method should therefore be considered as part of the overall acoustic specification.
• Fabric selection: The facing fabric should be suitable for acoustic applications and allow sound to reach the absorptive core. Colour, texture and finish can then be selected according to the interior design requirements.
• Fire performance: Where fire performance is required, check the classification and test documentation for the complete panel system, including the acoustic core, fabric and other construction components.
• Installation conditions: Check the existing wall or ceiling substrate, fixing requirements, panel dimensions and accessibility before finalising the system.
• Maintenance requirements: Consider the level of traffic, dust, cleaning requirements and the suitability of the fabric finish for the intended environment.
• Design requirements: Depending on the product system, panels may be available in different sizes, shapes, colours, textures and printed finishes. These options can be coordinated with the surrounding interior without compromising the required acoustic treatment.

For product-specific configurations, acoustic specifications and project requirements, explore our fabric acoustic panels range.

---

Installation of Fabric Acoustic Panels

The installation method depends on the panel construction, wall or ceiling substrate, panel dimensions and mounting system. Installation should follow the manufacturer's recommendations for the specific product.

1. Assess the Room

Before installation, consider room dimensions, existing finishes, sound sources, occupancy and the primary acoustic problem. This helps determine where additional sound absorption may be required.

2. Determine Panel Layout

Panel locations should be planned according to the room's acoustic requirements and available wall or ceiling surfaces. Coordination with doors, glazing, lighting, electrical equipment and other interior elements is important.

3. Select the Mounting Method

Depending on the product, fabric acoustic panels may be installed using mechanical fixing systems, concealed mounting systems, brackets or other manufacturer-approved methods.

4. Install the Panels

Panels should be securely installed and aligned according to the manufacturer's installation instructions. The substrate and fixing method should be appropriate for the panel weight and site conditions.

5. Check the Completed Treatment

After installation, the completed acoustic treatment should be reviewed to confirm that the panels are securely installed and that the intended areas of the room have received appropriate treatment.

For technically demanding spaces, acoustic requirements may need to be evaluated by a qualified acoustic professional before final product selection and installation.

---

Maintenance of Fabric Acoustic Panels

Maintenance requirements depend on the fabric, acoustic core, installation environment and manufacturer's recommendations.

Routine care may include careful dust removal, inspection of the fabric surface and checking the panels for damage or displacement.

Cleaning methods should be compatible with the fabric and panel construction. Always follow the manufacturer's care instructions to avoid damaging the acoustic surface or finish.

---

Creating a Complete Acoustic Treatment Strategy

Fabric acoustic panels can be highly useful for controlling reflected sound, but some rooms require treatment across several surfaces. A coordinated acoustic strategy considers the walls, ceiling, room volume, reflective finishes and intended use of the space.

Depending on the project, fabric acoustic panels may be combined with acoustic wall panels, ceiling acoustic systems, suspended baffles or other sound-absorbing treatments.

The objective should be to provide an appropriate amount and distribution of sound absorption rather than simply adding multiple products without considering the room's acoustic characteristics.

For product information and project requirements, see our fabric acoustic panels.

---

Frequently Asked Questions About Fabric Acoustic Panels

What are fabric acoustic panels?

Fabric acoustic panels are sound-absorbing panels consisting of an acoustic core covered with acoustically suitable fabric. They are commonly used to absorb reflected sound, control excessive reverberation and improve acoustic comfort within interior spaces.

Do fabric acoustic panels reduce noise?

Fabric acoustic panels primarily help control reflected sound and excessive reverberation within a room. They can improve speech intelligibility and acoustic comfort, but they should not be treated as a substitute for soundproofing or sound isolation.

Where can fabric acoustic panels be installed?

Fabric acoustic panels can be used in offices, conference rooms, classrooms, auditoriums, hotels, restaurants, studios, libraries, home theatres and other commercial or residential interiors where sound absorption is required.

What NRC rating do fabric acoustic panels have?

The NRC of a fabric acoustic panel depends on its construction, thickness, acoustic core, mounting method and test conditions. Product-specific acoustic test data should be reviewed when a particular absorption performance is required.

Can fabric acoustic panels be customised?

Depending on the product system, fabric acoustic panels may be available in different sizes, shapes, colours, textures, finishes and configurations. Some systems can also incorporate printed graphics or branding.

Are fabric acoustic panels fire rated?

Some fabric acoustic panel systems are available with fire-rated fabrics and core materials. Fire performance depends on the complete product construction and applicable test classification, so the manufacturer's documentation should be checked for project-specific requirements.

How long do fabric acoustic panels last?

The service life of fabric acoustic panels depends on the product construction, installation environment, usage and maintenance. Properly selected and maintained panels can provide acoustic treatment for many years.

Are fabric acoustic panels suitable for offices?

Yes. Fabric acoustic panels are commonly considered for offices, meeting rooms and other workplace interiors where reflected sound and excessive reverberation need to be controlled.

Can fabric acoustic panels be used in auditoriums?

Yes. Fabric acoustic panels can form part of an auditorium acoustic treatment strategy where control of reflected sound and reverberation is required. The panel type, quantity and placement should be selected according to the acoustic characteristics of the space.

---

Conclusion

Fabric acoustic panels are sound-absorbing interior treatment systems designed to help control reflected sound and excessive reverberation. Their use can contribute to improved speech intelligibility, acoustic comfort and more controlled listening conditions in offices, conference rooms, educational spaces, auditoriums, hospitality interiors and other applications.

Their effectiveness depends on the panel construction, acoustic core, thickness, mounting method, treatment coverage and characteristics of the room. For this reason, product specifications and acoustic test data should be considered when selecting a system for a particular project.

For commercial applications, product configurations and project requirements, explore Envirco Solutions' fabric acoustic panels range.

---
