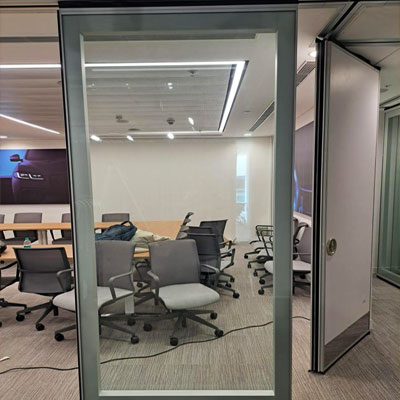

Sliding Folding Glass Partition – High Performance Acoustic Glass Partition System

Sliding Folding Glass Partition for Modern Flexible Spaces

The Sliding Folding Glass Partition is an operable transparent partition system designed to provide excellent acoustic insulation while maintaining maximum transparency and flexibility in modern interior spaces. The system delivers sound insulation up to 50 dB, tested in a third-party accredited laboratory in accordance with EN 20140-3 standards, making it suitable for offices, conference rooms, hotels, and commercial interiors where acoustic control is essential.

For projects requiring alternative movable partition solutions, you may also explore ourOperable Acoustic Partition Wall systems which provide flexible space division with high acoustic performance.

The Sliding Folding Glass Partition panels are suspended from a top track system, eliminating the need for floor tracks and ensuring smooth operation with an unobstructed floor finish. Each element is constructed with double-glazed toughened safety glass, allowing maximum glass visibility while maintaining structural integrity and sound insulation performance.

The frame design incorporates minimal peripheral framing to achieve a sleek architectural appearance. Frame widths do not exceed 118 mm for horizontal members and 30 mm for vertical members, while the overall panel thickness remains within 100 mm, ensuring a consistent and integrated appearance across the entire partition system.

In order to ensure efficient acoustic sealing and stable operation, the partition elements are equipped with an advanced ComforTronic automatic sealing system. This system automatically extends and retracts horizontal sealing strips in a positional sequence through electrically powered control. The sealing mechanism ensures tight contact with the floor and ceiling track profiles, significantly improving the acoustic performance of the Sliding Folding Glass Partition system.

For enhanced flexibility in interior space management, our Acoustic Sliding Folding Partition solutions can also be considered for applications requiring high sound insulation combined with movable wall functionality.

The sealing strips are made from high-strength aluminium designed to meet strict acoustic attenuation and durability requirements. The extension stroke of the sealing strips is at least 30 mm, allowing the system to compensate for structural tolerances in both floor and ceiling levels. The interconnection between partition elements is achieved through a precision convex-concave aluminium profile design, ensuring resistance-free movement and reliable sealing between panels.

The system also includes a motorised telescopic wall abutment for the final closure element. This telescopic end panel ensures a tight acoustic seal against the wall while maintaining the transparent design of the partition system. The telescopic closure width does not exceed 350 mm, preserving the visual openness of the glass partition.

For projects requiring integrated acoustic solutions, our Acoustic Doors can be combined with glass partition systems to provide complete sound control for meeting rooms, auditoriums, and commercial interiors.

Construction & Structural Support

The Sliding Folding Glass Partition system includes complete structural support fabricated from mild steel (MS) members suspended from the true slab. All MS structural components are treated with red oxide zinc chromate primer and finished with two coats of synthetic enamel paint to ensure corrosion resistance and durability.

The glass elements feature spring-loaded double chamber seals at the top and bottom which press against the track and floor surfaces to maintain stable acoustic sealing even when floor levels are uneven. Polyurethane mouldings are used to ensure proper vertical sealing between extended sealing strips.

To complement transparent partition systems, our Movable Glass Partition Systems provide additional design options for modern commercial environments where both openness and flexibility are required.

Additional System Features

The Sliding Folding Glass Partition system also includes several advanced features that enhance usability and performance:

• Toughened double-glazed safety glass panels
• Top suspended track system with smooth sliding operation
• Automatic ComforTronic sealing system
• Motorised telescopic end closure panel
• Mechanical emergency unlocking device for safety
• Pass door element with independent locking mechanism
• High-strength aluminium sealing strips
• STC 50 acoustic rating

The system is designed to maintain an elegant, transparent appearance while providing reliable acoustic performance and flexible space division.

FAQs

What is a sliding folding glass partition?

A sliding folding glass partition is a movable glass wall system designed to divide spaces while maintaining transparency and acoustic insulation.

What is the sound insulation of sliding folding glass partitions?

High-quality sliding folding glass partitions can provide sound insulation up to 50 dB, depending on the glazing and sealing system.

Where are sliding folding glass partitions used?

They are commonly used in offices, hotels, conference halls, training rooms, banquet spaces, and commercial interiors.

If you are planning a project that requires a Sliding Folding Glass Partition, contact our team to discuss your requirements and receive a customised quotation. We provide high-performance glass partition systems designed for modern offices, conference rooms, hotels, and commercial interiors.
